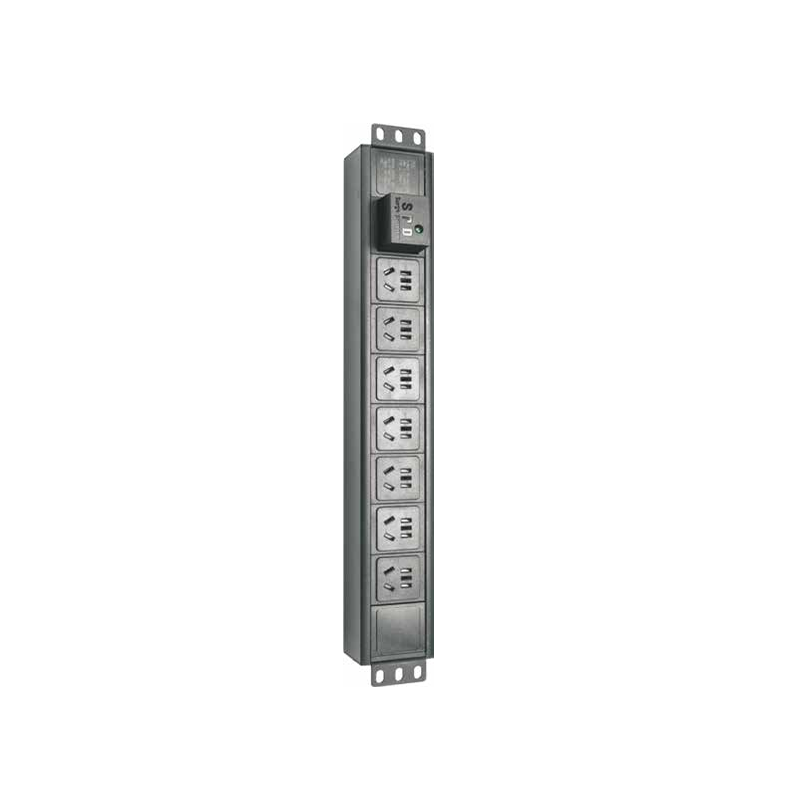

PDU Power Distribution Unit Socket System With Multi Function
Product design and instructin
PDU are mainly applicable to 19" standard cabinets and non-standard
cabinets. All products are designed for modular structure. Can be
customized according to customer's technical needs; Carefully
designed in strict accordance with international standards and has
obtained
invention and utility patents; Advanced technology, innovative
structure.
Safe and reliable quality, easy installation, wide use; Can be
installed horizontally or vertically, the longest can be more than
2M, the maximum can be configured with 45-bit output unit; Input
voltage is divided into 110VAC., 220VAC, 380VAC, output voltage is
divided into 110VAC, 220VAC; Maximum load current can reach
10-100A, maximum power 2500W-25000W; Has passed the authority of
the safety inspection system and safety certification. Specially
meet the specifications and requirements of RoHS body order.
- Modular product structure
All functions of PDU are designed and produced according to modular
structure
- Diversified socket system
PDU design has a variety of world-standard power socket modules,
that can meet the different needs of customers around the world
- Easy installation and fixing
The PDU design has a variety of styles of installation and fixing
structural components, which can be easily and firmly installed and
fixed horizontally or vertically in multiple directions
- Multiple control functions
PDU design has a variety of control function modules, power
switches, circuit breakers, indicators, etc., there are overall
system control, multiple control, unit independent control or
special beads specified control, and other control modes
Model
| Model | Type | Function Module | Installation Type | Input Power | Rated Current | Input Plug | Output Socket |
|---|
| PDU-10A-8F-M-P | Functional | Hot-swap lightning protection module | Horizontal | 230VAC | 10A | GB10A | New national standard 5 holes 10A |
| PDU-16A-8F-M-P | Functional | Hot-swap lightning protection module | Horizontal | 230VAC | 16A | GB16A | New national standard 5 holes 10A |
| PDU-32A-8F-M-P | Functional | Hot-swap lightning protection module | Horizontal | 230VAC | 32A | 32A Industrial Connector | New national standard 5 holes 10A |
