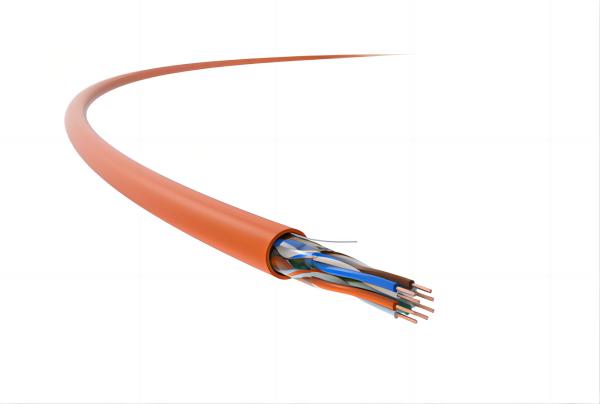

    1Gbps, Unshielded Twisted Pair Cable for Security AWG24, Indoor

    Ask Lasest Price
    Brand Name : TC
    Model Number : UTP-15-5E-4P-AF
    Certification : UL, RoSH, REACH, CE
    Price : Negotiable
    Payment Terms : Western Union, T/T, L/C, MoneyGram
    • Product Details
    • Company Profile

    1Gbps, Unshielded Twisted Pair Cable for Security AWG24, Indoor

    UTP Cat 6 Cable, Anti-Rodent Cable, Rat-Proof Cat 6 Cable, Rodent Resistant Cable, 24 AWG Application


    It can be applied in horizontal cabling, as the portion of a telecommunications cabling system that extends from the work area telecommunications outlet to the patch panels in the distribution room, and in residential cabling that extends from the user telecommunications outlet to the patch panels.


    Product Features

    TC's Cat 6, 24 AWG, 4-pair, unshielded indoor cable adopts cross-type spline, with outer jacket in special rodent resistant material, optimized to greatly enhance technical indicators, including Attenuation and NEXT, which exceed the parameters specified in GB/T 18015.5 (IEC 61156-5) standards.


    At the same time, it acts on the requirements for high transmission in data center, and structured cabling in new buildings.


    Application Standards

    TIA/EIA568-C.2


    Technical Details


    Transmission PerformanceCat.5ETC
    Frequency (MHz)4102031.2562.5100150
    IL Attenuation (dB/100M)3.86.111.015.817.920.023.6
    Near End Crosstalk Attenuation (NEXT, dB)80.077.061.158.262.066.347.7
    NEXT Power and PS NEXT (dB)68.860.352.950.546.941.940.1
    Equal Level Far-end Crosstalk Attenuation (ACR-F, dB)82.272.776.375.769.671.368.7
    ACR-F Power and PS ACR-F (dB)68.764.269.569.266.561.056.3
    Return Loss (RL, dB)46.066.637.541.536.932.228.9

    Notes: The values reflected in the table above are typically measured, in accordance with IEC 61156-9.

    Physical Specifications
    Conductor Size (nominal value)
    4×2×0.48 (AWG24)
    Outer Diameter of Cable (nominal
    value)
    5.0mm
    Weight (305m, with package,
    nominal value)
    9kg

    Electrical Properties
    DC resistance (20℃ )
    100Ω/km
    Earth Capacity
    ≦ 5.6 nF/100m (@1kHz)
    100MHz Characteristic Impedance
    100Ω±15Ω
    Transverse Conversion Loss (TCL)
    ≥ 50dB-10×lgf (4-100MHz)
    Delay Skew
    None required
    NVP
    69%
    Power Over Ethernet (POE)Enhanced Power Over Ethernet under IEEE 802.3at

    Mechanical Properties
    Minimum Bend Radius (dynamic)
    20mm
    Minimum Bend Radius (static)
    40mm
    Maximum Installation Tension
    100N
    Anti-Extrusion Capacity
    1000N/10cm
    Anti-Shock Capacity
    ≥ 10 times
    Installation Temperature Range
    -0℃ ~+40℃
    Working Temperature Range
    -20℃ ~+75℃

    Flammability (Rodent Resistant LSZH)
    Flame Resistance (of single wire)GB/T 18380.12 (IEC 60332-1-2)
    Smoke DensityGB/T 17651 (IEC 61034-1/-2)
    Hazardous Halogen GasGB/T 17650.1/.2 (IEC 60754-1/-2)
