Magic II Generation RJ45 Lockable Jumper Cable
Cat.6A/Cat.6,Shielded/Unshielded
Product Application
It is used for the transmission of data, voice, audio and video,
image and other signals in the communication integrated wiring
system of the building. Together with copper cables, modules and
other components, it forms an integrated wiring information
transmission channel, and connects the information entrance and
exit with active equipment (switches, computers, etc.) . TC Magic Ⅱ
generation RJ45 jumper with lock products include Category 6 and
Category 6e copper cable jumpers. The performance fully meets and
exceeds the copper cable jumper
monomer standard specified in IEC 61935-2, and the bandwidth
reaches 350MHz(Cat. 6 jumper)/600MHz (Cat.6A jumper), with Cat.6/6A
link, applicable to all applications supported by Class D, E and EA
(requires Cat.6A jumper), including Ethernet applications , such
as: 10GBase-T, 5GBase-T, 2.5GBase-T, 1GBase-T, 1GBase-TX,
100Base-T, etc. It can be used in IEEE 802.3at-compliant Power over
Ethernet Plus applications (POE+).
Product Features
Magic II generation RJ45 lockable patch cords have been
comprehensively upgraded from the first generation while retaining
the highly praised front hard, rear soft composite design,
effectively ensuring the bending radius of the patch cords. It
solves the issues of "big nose" lock cores and long port insertion
dimensions, making it suitable for panels and distribution frames
with dust doors, featuring a compact design for high-density switch
environments.

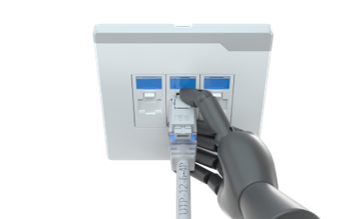

Multiple plug-and-play methods, suitable for various complex
environments Magic II generation RJ45 lockable patch cords support
two plug-and-play methods: the traditional manual press-and-release
method, suitable for general structured cabling in data centers,
and a key-locked mechanism for direct extraction, suitable for
high-density applications. The key integrates the unlocking
function for LC Uniboot lockable patch cords and fiber adapter
ports.
Lockable structure, providing security, confidentiality, and
convenience Data security design is achieved through optimized
structural design, effectively preventing intrusion by blade-type
tools, as well as thwarting unlocking attempts using tools like
paper clips and tweezers. This prevents unauthorized personnel from
easily disconnecting network equipment or related connections,
ensuring uninterrupted information transmission and preventing the
infiltration of malware. It enhances network equipment security and
reduces the risk of information leakage.
Patented detachable pull rod
It is both a rod and a key. The patented key with a rod can be used
to easily insert and remove the jumper even in a high-density
environment.
The color recognition feature ensures clear and distinct
identification
The internally specially designed reverse tooth buckle can increase
the stability of the cable after installation. All jumpers are
equipped with easy-to-detach color rings, meeting the requirements
for visual color identification.
Application Standards
GB/T 18233 (ISO/IEC 11801); GB 50311; TIA/EIA568-C.2 etc.
| Mechanical performance |
| Jumpers Type and Length | Multi-strand flexible cable, standard length 0.5m to 20m,
customizable. |
| Insertion and Extraction Cycles | ≥ 750 times |
| Storage Temperature | -40℃ ~+70℃ |
| Installation Temperature | -10℃ ~+60℃ |
| Operating Temperature | -20℃ ~+60℃ |
| Electrical performance |
| Insulation strength | DC 1000V (AC 750V) withstands no breakdown and arc phenomena for 1
minute |
| High-frequency performance | IEC 61935-2 compliant, 100% pass jumpers monotype testing |
| Power over Ethernet(POE) | Complies with IEEE 802.3at Enhanced Ethernet Power Supply |
