Cat 6 Cable, Cat 6 Network Cable, Cat 6 Ethernet Cable, TPU sheath,
outdoor application
It can be applied in harsh field environments or indoor industrial
environments where cable properties, such as abrasion, corrosion,
oil/weather/ozone resistance, pulling force, high and low
temperature, must be good.
Product Features

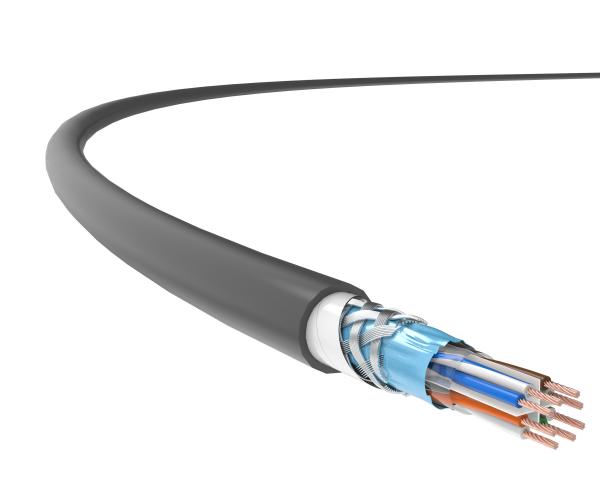

TC's Cat 6, 23 AWG, 4-pair shielded tactical cable adopts cross-type spline and overall aluminum foil shield, optimized to greatly enhance technical indicators, including
Attenuation, NEXT, and ANEXT. Its unique TPU jacket ensures highly
efficient data transmission even exposed to the field, industrial
environment and other harsh environments.
Its performance exceeds all the parameters specified in IEC 61156-5
standards.
And the cable is especially useful in some harsh electromagnetic
environments where high-speed and stable cable transmission is
required.
At the same time, it acts on the requirements for structured
cabling in new buildings.
Application Standards
ISO/IEC 11801
Technical Details
| Transmission Performance | Cat.6 | TC |
| Frequency (MHz) | 4 | 31.25 | 62.5 | 100 | 200 | 250 | 350 |
| IL Attenuation (dB/100M) | 3.4 | 9.5 | 13.5 | 17.2 | 24.8 | 28 | 31 |
| Near End Crosstalk Attenuation (NEXT, dB) | 94 | 77.4 | 69.5 | 72.9 | 65.3 | 61.9 | 62.4 |
| NEXT Power and PS NEXT (dB) | 73.9 | 69.9 | 61.7 | 64.3 | 59.6 | 61 | 58.6 |
| Equal Level Far-end Crosstalk Attenuation (ACR-F, dB) | 108.9 | 99.2 | 90.7 | 107.2 | 82.8 | 77.2 | 74.6 |
| ACR-F Power and PS ACR-F (dB) | 94.4 | 91.2 | 87.9 | 90.5 | 77 | 73.8 | 70.5 |
| Return Loss (RL, dB) | 37.3 | 37.5 | 37.3 | 31.6 | 23.4 | 24.2 | 22.8 |
Notes: The values reflected in the table above are typically
measured, in accordance with IEC 61156-9.
| Electrical Properties |
| DC resistance (20℃ ) | 93.8Ω/km |
| Earth Capacity | ≦ 5.6 nF/100m (@1kHz) |
| 100MHz Characteristic Impedance | 100Ω±15Ω |
| Transverse Conversion Loss (TCL) | ≥ 55dB-20×lgf (100-2000MHz) |
| Delay Skew | 25ns/100m |
| Mechanical Properties |
| Minimum Bend Radius (dynamic) | 32mm |
| Minimum Bend Radius (static) | |
| Maximum Installation Tension | 150N |
| Anti-Extrusion Capacity | 1000N/10cm |
| Flammability (TPU) |
| TPU Flame Resistance | GB/T 18380.12 (IEC 60332-1-2) |
