UTP Cat 5e Cable, Cat 5e Network Cable, Cat 5e Ethernet Cable
Application
It can be applied in horizontal cabling, as the portion of a
telecommunications cabling system that extends from the work area
telecommunications outlet to the patch panels in the distribution
room, and in residential cabling that extends from the user
telecommunications outlet to the patch panels.
TC's UTP-11/21 series, indoor Cat 5e unshielded cabling system has test frequency up to 150MHZ, higher than other Cat 5e cables with industry standard of 100MHz.
In the meantime, it supports the latest 2.5G Base-T applications and Power Over Ethernet
(POE/POE+).
Product Features
TC's Cat 5e, 24 AWG, 4-pair, unshielded indoor cable is optimized
to greatly enhance technical indicators, including Attenuation and
NEXT, which exceed the parameters specified in GB/T 18015.5 (IEC
61156-5) standards and ensure high-speed and stable cable
transmission.
At the same time, it acts on the requirements for renovation
projects and structured cabling in new buildings.
Application Standards
GB/T 18233 (ISO/IEC 11801); GB 50311; TIA/EIA568-C.2
Technical Details

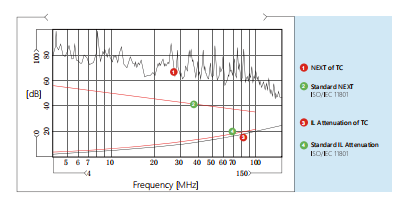

| Transmission Performance | Cat.5E | TC |
| Frequency (MHz) | 4 | 10 | 31.25 | 62.5 | 75 | 100 | 150 |
| IL Attenuation (dB/100M) | 3.8 | 6.1 | 11 | 15.8 | 17.9 | 20 | 23.6 |
| Near End Crosstalk Attenuation (NEXT, dB) | 80 | 77 | 61.1 | 58.2 | 62 | 66.3 | 47.7 |
| NEXT Power and PS NEXT (dB) | 68.8 | 60.3 | 52.9 | 50.5 | 46.9 | 41.9 | 40.1 |
| Equal Level Far-end Crosstalk Attenuation (ACR-F, dB) | 82.2 | 72.7 | 76.3 | 75.7 | 69.6 | 71.3 | 68.7 |
| ACR-F Power and PS ACR-F (dB) | 68.7 | 64.2 | 69.5 | 69.2 | 66.5 | 61 | 56.3 |
| Return Loss (RL, dB) | 46 | 66.6 | 37.5 | 41.5 | 36.9 | 32.2 | 28.9 |
Notes: The values reflected in the table above are typically
measured, in accordance with IEC 61156-9.
| Physical Specifications |
| Conductor Size (nominal value) | 4×2×0.51 (AWG24) |
Outer Diameter of Cable (nominal
value) | |
Weight (305m, with package,
nominal value) | 10kg |
| Electrical Properties |
| DC resistance (20℃ ) | 95Ω/km |
| Earth Capacity | ≦ 5.6 nF/100m (@1kHz) |
| 100MHz Characteristic Impedance | 100Ω±15Ω |
| Transverse Conversion Loss (TCL) | ≥ 55dB(30-100MHz) |
| Delay Skew | 25ns/100m |
| NVP | 69% |
| Power Over Ethernet (POE) | Enhanced Power Over Ethernet under IEEE 802.3at |
| Mechanical Properties |
| Minimum Bend Radius (dynamic) | 20mm |
| Minimum Bend Radius (static) | |
| Maximum Installation Tension | 100N |
| Anti-Extrusion Capacity | 1000N/10cm |
| Anti-Shock Capacity | ≥ 10 times |
| Installation Temperature Range | -0℃ ~+40℃ |
| Working Temperature Range | -20℃ ~+75℃ |
| Flammability (PVC) |
| PVC Flame Resistance | GB/T 18380.12 (IEC 60332-1-2) |
| Fire Rating CM/CMR | UL 1581 |
| Flammability (LSZH) |
| Flame Resistance (of single wire) | GB/T 18380.12 (IEC 60332-1-2) |
| Smoke Density | GB/T 17651 (IEC 61034-1/-2) |
| Hazardous Halogen Gas | GB/T 17650.1/.2 (IEC 60754-1/-2) |
