Outdoor Cat 5e Cable, Cat 5e Network Cable, UTP Cat 5e Cable Outdoor Application
It can be applied in outdoor horizontal cabling, the portion of the
work area (cameras, etc.) telecommunications outlet in the building
digital security system.
As a crucial part of digital security system, horizontal cabling
calls for higher reliability and compatibility.
TC's UTP-35 series, outdoor security unshielded cabling system has test frequency up to 100MHZ.
In the meantime, it supports 100 Base-T/1G Base-T applications and long range Power Over
Ethernet (POE/POE+).
Product Features
TC's 24 AWG, 4-pair, outdoor unshielded security cable has a smaller diameter, optimized to greatly enhance technical indicators, including
Attenuation and NEXT.
It meets the requirements of Q TC J1.1-2018 standards by Shanghai
Tiancheng Communication Technology Corp. and "Security Cable
Standards" (temporarily named, still in the making) by The Ministry
of Public Security.
The cable ensures high-speed and stable cable transmission, mainly
used for video surveillance, access control, building intercom in
building security system.
Application Standards
GB/T 18233 (ISO/IEC 11801); GB 50311; TIA/EIA568-C.2

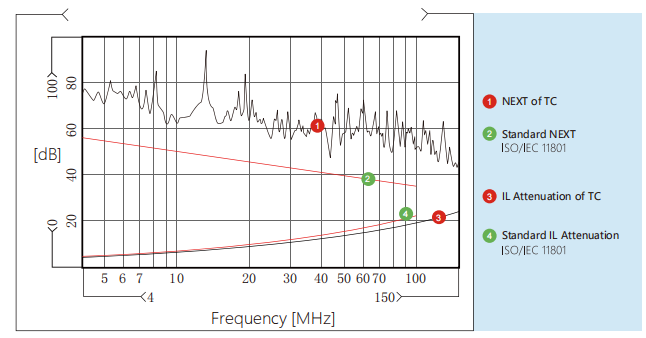

Technical Details
| Transmission Performance | Cat.5E | TC |
| Frequency (MHz) | 4 | 10 | 20 | 31.25 | 62.5 | 100 | 150 |
| IL Attenuation (dB/100M) | 3.8 | 6.1 | 8.7 | 10.9 | 15.5 | 19.9 | 22.4 |
| Near End Crosstalk Attenuation (NEXT, dB) | 76.5 | 62.8 | 64.2 | 58.5 | 58.6 | 51.2 | 44.8 |
| NEXT Power and PS NEXT (dB) | 69 | 60.3 | 62.5 | 54.1 | 49.1 | 46.9 | 44.3 |
| Equal Level Far-end Crosstalk Attenuation (ACR-F, dB) | 75 | 84.5 | 64.9 | 63.1 | 68.4 | 79.1 | 69.8 |
| ACR-F Power and PS ACR-F (dB) | 71.2 | 67.9 | 63 | 58.4 | 58.9 | 66.5 | 60.2 |
| Return Loss (RL, dB) | 32 | 36.1 | 36.6 | 34.5 | 41.1 | 33.4 | 39 |
Notes: The values reflected in the table above are typically
measured, in accordance with IEC 61156-9.
| Physical Specifications |
| Conductor Size (nominal value) | 4×2×0.48 (AWG24) |
Outer Diameter of Cable (nominal
value) | |
Weight (305m, with package,
nominal value) | 9.0kg |
| Electrical Properties |
| DC resistance (20℃ ) | 100Ω/km |
| Earth Capacity | ≦ 5.6 nF/100m (@1kHz) |
| 100MHz Characteristic Impedance | 100Ω±15Ω |
| Transverse Conversion Loss (TCL) | ≥ 50dB-10×lgf (4-100MHz) |
| Delay Skew | None required |
| NVP | 69% |
Power Over Ethernet (POE) | Enhanced Power Over Ethernet under IEEE 802.3at |
| Mechanical Properties |
| Minimum Bend Radius (dynamic) | 20mm |
| Minimum Bend Radius (static) | |
| Maximum Installation Tension | 100N |
| Anti-Extrusion Capacity | 1000N/10cm |
| Anti-Shock Capacity | ≥ 10 times |
| Installation Temperature Range | -0℃ ~+40℃ |
| Working Temperature Range | -40℃ ~+60℃ |
