Cat 7 Cable, CAT 7 Network Cable, CAT 7 Ethernet Cable, SFTP, CAT 7 SFTP Cable Application

Cat 7, the dual shielded (S/FTP) network cable with 4 pairs, supports 600MHz of bandwidth and 10G Base-T at 100 m, especially useful for connecting servers, switches, patch panels, and other devices in the data center, as well as high bandwidth structured cabling system.

Compared to Cat 6, Cat 7 shielded cable has higher bandwidth due to S/FP shield design and provides higher NEXT and ANEXT performance than the common unshielded Cat6a. In the meantime, it supports Power Over Ethernet (POE/POE+).

Product Features

Cat 7, 8-core shielded cable, uses pair shield and overall shield structure, with a separate aluminum foil shield for each pair and an overall tinned copper mesh braided shield.

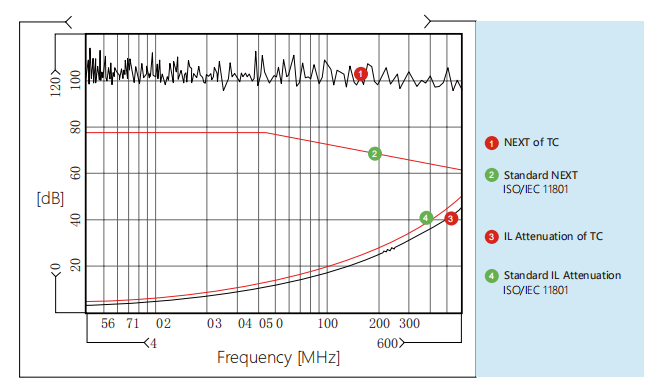

This optimizes Near End Crosstalk/Far End Crosstalk (NEXT/FEXT) and Alien Near End Crosstalk (ANEXT) performance, thus resulting in a maximum transmission frequency of 600MHz.

TC's Cat 7 shielded indoor cable is fitting and exceeding the international standards.

It provides highly confidential transmission in high speed network applications, helps unify the cabling platform of current network applications, also supports future new applications as well as POE/POEs applications, so that all kinds of information from e-mail to multimedia video can be transmitted in the same set of high-speed system.

Application Standards

GB/T 18233 (ISO/IEC 11801); GB 50311; TIA/EIA568-C.2

Technical Details

Notes: The values reflected in the table above are typically measured, in accordance with IEC 61156-9.

Who We Are ?

TC Smart Systems Group was established in 1988, and has grown into a national powerhouse in low voltage cables and cabling system. We are also a public company with code 872049. Our company has branches all over China, with more than 1,000 offices . We have entered international market since 2019, and already have agents or offices in Russia, Malaysia, South Africa, Egypt etc.

What We Do ?

TC brand ranks first in low voltage cables and third in structured cabling system. We provide all serials of cables and wiring for security systems, commercial buildings, metro lines, airport and many more. With annual output more than 230 million dollars, TC is known to those who are in this industry.

How We Did ?

TC is the only Chinese enterprise who has two specialists in IEC/ISO group, so we know better how the industry develops and how to guarantee the product quality. Besides, we have our own lab to ensure the products we provided can satisfy customers' needs.

Where you can find TC?

TC has participated in many typical cases all over the world, such as Nigeria Lagos Airport, BSCA Bank, Gabon Gentil Stadium, Shanghai Expo, Beijing Bird’s Nest Stadium, Shanghai Pudong Airport and more.
