4kW to 30kW TCMC Series Rack Mounted Air Conditioner 4U Size
Product Application
TCMC Series Rack mounted Air Conditioner is mainly intended to cool
the servers in small micro-modular data centers, such as modular
data centers, mini data centers and so on, and widely used for
server room cabinets and edge computer rooms in the government,
banks, schools, enterprises and institutions.
Refrigeration capacity
4 to 30kW
Product Features
High Efficiency and Energy Reduction
• Close to heat source, high-efficient, total heat, energy
efficiency ratio of 3.3;
• R410A Eco-Refrigerant;

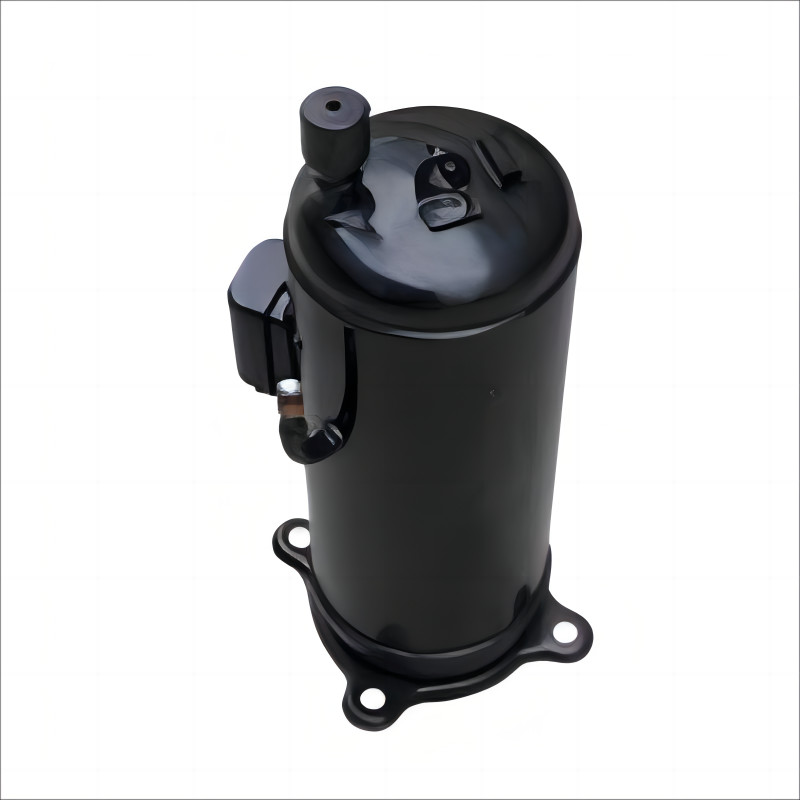

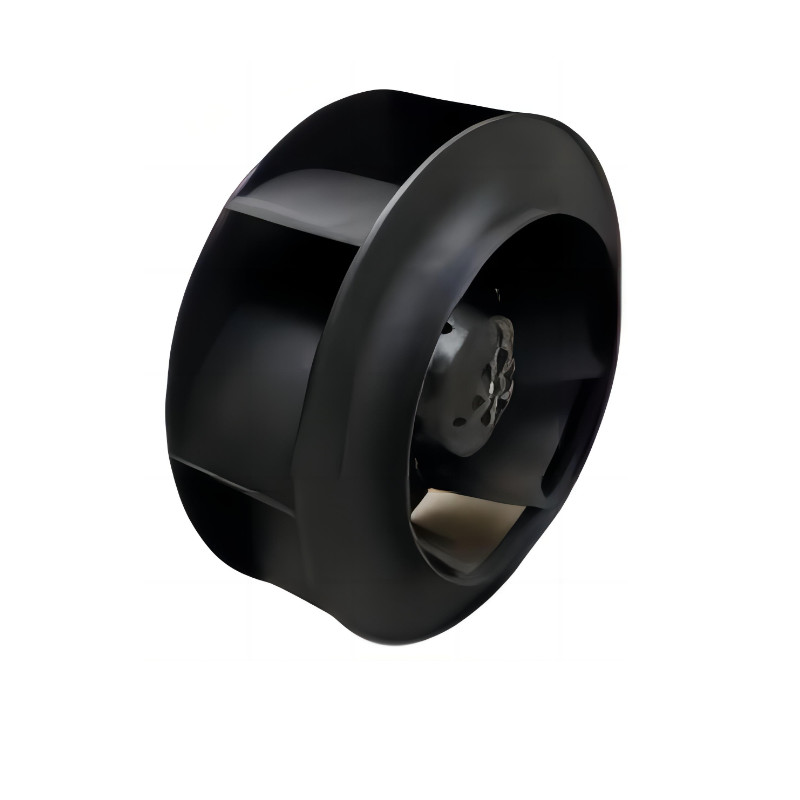

• Efficient EC fan coupled with EC compressor.
High Reliability
• 24 hours, 365 days of continuous operation, with a lifespan of 10
years;
• All accessories subject to rigorous inspection and testing, all
in stable performance;
• Multiple protection for proper operation.
Flexible Configuration
• 4U of rack space, perfectly matched to the server rack;
• Multiple return air methods available to meet a variety of
installation requirements
• Equipped with a handle for easy installation and maintenance.
Smart Control
• Multi-channel sensor monitoring, advanced PID control technology;
• Sound protection and alarm function, master diagnostic function;
• RS485 smart communication interface for easy remote monitoring.
Technical Specifications
| Model | Unit | TCMC04 | TCMC08 | TCMC15 | TCMC30 |
| Overall Cooling Capacity (Max Air Volume) | kW | 4.5 | 8.8 | 15.9 | 31.2 |
| Overall Cooling Capacity (Rated Air Volume) | kW | 4.2 | 8 | 14 | 28.8 |
| Quantity of Fans | No. | 1 | 1 | 1 | 2 |
| Air Volume | m³/h | 750 | 1900 | 2400 | 5450 |
| Power Source | -- | 220V~/50Hz |
| Max Input Current for The Entire Body | A | 8 | 21.5 | 28 | 55 |
| Coil Material | -- | Brass forging aluminum fin |
| Refrigerant | -- | R410A |
| Size for Liquid Pipe / Air Pipe (Copper) | mm | 9.52/12.7 | 9.52/15.88 | 9.52/15.88 | 9.52/15.88 |
| Condensate Pump Size (Optional) | -- | -- | 6mm PE flexible pipe | 6mm PE flexible pipe | 6mm PE flexible pipe |
| Indoor Units Operating Weight | kg | 26 | 55 | 75 | 100 |
| Indoor Units Size (W*D*H) | mm | 439*878*176 | 440*903*440 | 440*996*530 | 440*996*930 |
| Model for Corresponding Outdoor Units | -- | TCMC04A1W | TCMC08A1W | TCRV050B1 | 2*TCRV050B1 |
| Max Input Current for the Outdoor Units | A | 6.5 | 18.5 | 24.9 | 24.9 |
| Outdoor Units Power Supply | -- | 220V~/50Hz |
| Outdoor Units Weight (Single) | kg | 48 | 105 | 115 | 115 |
| Outdoor Units Size (W*D*H) | mm | 856*296*617 | 1100*430*810 | 900*350*1160 | 900*350*1160 |
Support and Services:
Our Structured Cabling Accessories product comes with comprehensive
technical support and services to ensure smooth installation and
operation. Our team of experts provides guidance and assistance for
installation, configuration, and maintenance of our products.
We offer training and certification programs to help you become
proficient in using our products and optimizing their performance.
Our support services include online resources such as FAQs, product
documentation, and troubleshooting guides to assist you in
resolving any issues you may encounter.
In addition, we offer warranty and repair services to ensure that
your products are functioning as intended. Our technical support
and services are available to our customers 24/7, ensuring that you
have access to assistance whenever you need it.
Packing and Shipping:
Product Packaging:
- 1 per pack
- Individually wrapped for protection
- Packaged in a durable and compact box
Shipping:
- Ships within 7-20 business days
- Ships via standard ground shipping
- Shipping calculated at checkout
FAQ:
A: The brand name of this structured cabling accessory is TC.
2. Q: What is the model number of this product?
A: The model number of this product is TCMC-*.
3. Q: Where is this product manufactured?
A: This product is manufactured in China.
4. Q: What is the minimum order quantity for this product?
A: The minimum order quantity for this product is negotiable.
5. Q: What are the payment terms accepted for this product?
A: The payment terms accepted for this product are L/C, T/T,
Western Union, and MoneyGram.
6. Q: What certifications does this product have?
A: This product is certified with SNMP, TCP/IP.
7. Q: What is the packaging detail for this product?
A: The packaging detail for this product is carton.
8. Q: Is the price of this product negotiable?
A: Yes, the price of this product is negotiable.
